General specifications

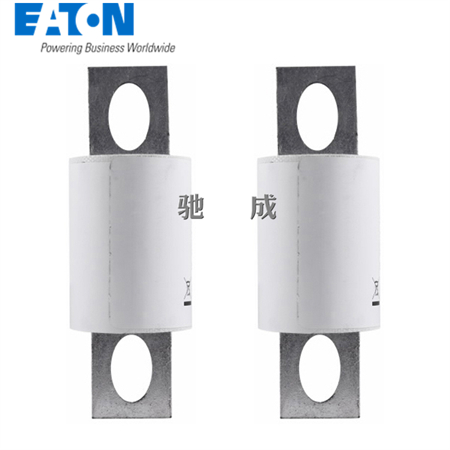

Product Name:  Eaton Bussmann series FWH high speed fuse

Catalog Number:  FWH-300A

UPC:  051712150163

Product Length/Depth:  1.69 in

Product Height:  1.61 in

Product Width:  4.52 in

Product Weight:  .52 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
CSA Certified

Electrical rating

Amperage Rating:  300A RMS

Interrupt rating:  200 kAIC at 1000 Vac
50 kAIC at 500 Vdc

Voltage rating:  1000 Vac, 800 Vdc

Watt losses:  51 W

Physical details

Packaging type:  Standard

General information

Connection:  Blade end x blade end

Fuse indicator:  Non Indicating

Mounting method:  Stud
