General specifications

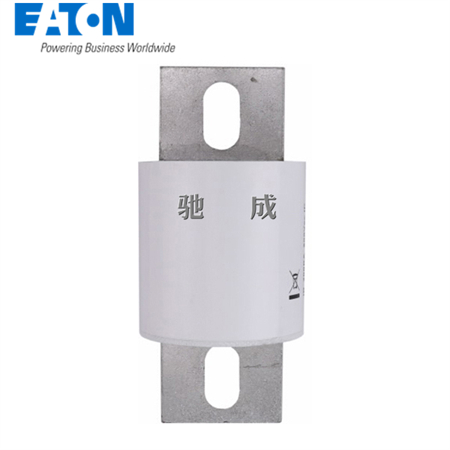

Product Name:  Eaton Bussmann series FWH high speed fuse

Catalog Number:  FWH-500A

UPC:  051712150217

Product Length/Depth:  2.17 in

Product Height:  2.8 in

Product Width:  5.3 in

Product Weight:  .92 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  CSA Certified
UL Recognized

Electrical rating

Amperage Rating:  500A RMS

Interrupt rating:  200 kAIC at 1000 Vac
50 kAIC at 500 Vdc

Voltage rating:  750 Vac, 750 Vdc

Watt losses:  84 W

Physical details

Packaging type:  Standard

General information

Connection:  Blade end x blade end

Fuse indicator:  Non Indicating

Mounting method:  Stud
