General specifications

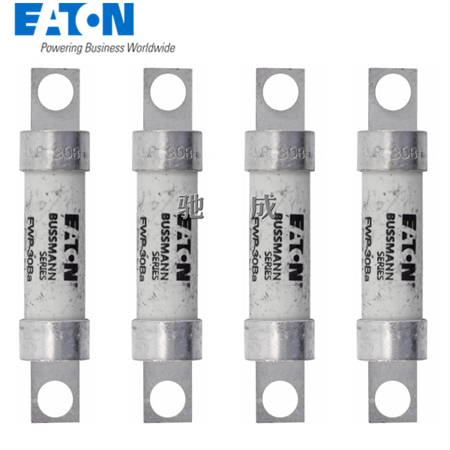

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-30B

UPC:  051712557832

EAN:  5027590500593

Product Length/Depth:  73 mm

Product Height:  15 mm

Product Width:  15 mm

Product Weight:  24.8 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
CSA Certified

Product specifications

Rated voltage DC:  700 V

Interrupt rating:  50 kAIC at 700 Vdc
200 kAIC Vac
200 kAIC at 300 Vdc
50 kAIC at 300 Vdc

Center-to-center distance of connections:  63.35 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC/DC

Mounting method:  Stud

Amperage Rating:  30 A

Fuse type:  FWP-B

Rated switching capacity:  200 A

Fuse size:  14 x 51 mm

Voltage rating:  700 Vac, 700 Vdc (UL)

Fuse indicator:  Non Indicating

Construction size:  Other

Clearing (I2T):  450 at 700 V

Rated voltage AC:  700 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  M6

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  9 W

Type:  High speed fuse

Fuse shape:  Center bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  58

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
