General specifications

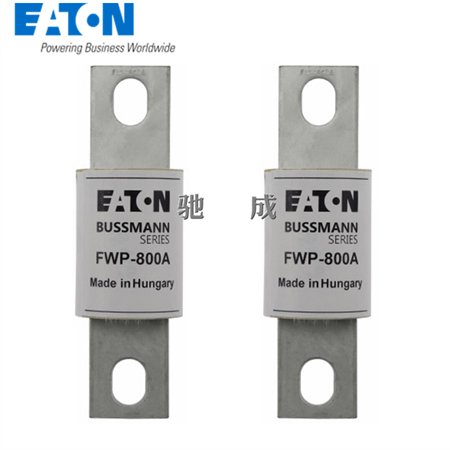

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-800A

UPC:  051712796064

EAN:  5027590021869

Product Length/Depth:  169 mm

Product Height:  52 mm

Product Width:  52 mm

Product Weight:  567 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  CSA Certified
UL Recognized

Product specifications

Rated voltage DC:  700 V

Interrupt rating:  200 kAIC Vac
50 kAIC at 700 Vdc

Center-to-center distance of connections:  134.95 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC/DC

Mounting method:  Stud

Amperage Rating:  70

Fuse type:  FWP-A

Rated switching capacity:  200 A

Voltage rating:  700 Vac, 700 Vdc (UL)

Fuse indicator:  Non Indicating

Construction size:  Other

Clearing (I2T):  450000 at 700 V

Rated voltage AC:  700 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  Other

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  140 W

Type:  High speed fuse

Fuse shape:  Center bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  78000

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
