General specifications

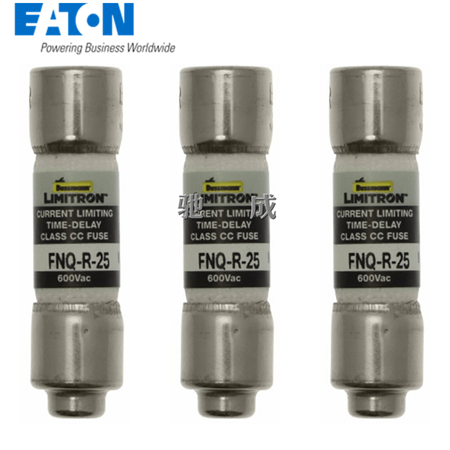

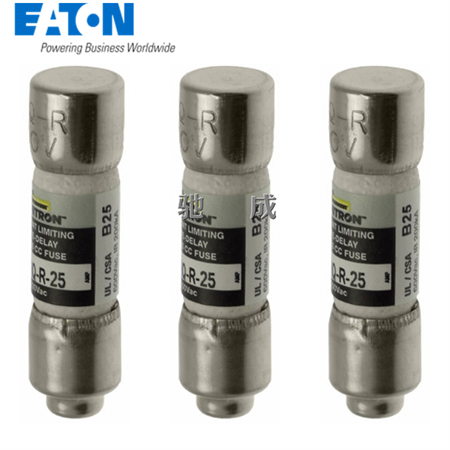

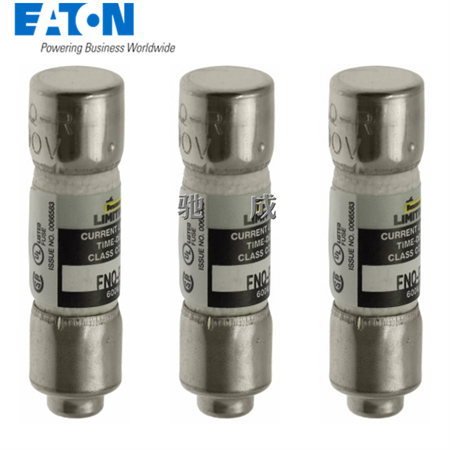

Product Name:  Eaton Bussmann series FNQ-R fuse

Catalog Number:  FNQ-R-25

UPC:  051712497138

EAN:  5027590449724

Product Length/Depth:  .41 in

Product Height:  1.5 in

Product Width:  .41 in

Product Weight:  .15 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Electrical Ratings

Amperage Rating:  25 A

Interrupt rating:  200 kAIC

Voltage rating:  600 V

General Information

Application:  Line protection, small control transformers, industrial control, branch circuits

Class:  Class CC

Connection:  Ferrule end x ferrule end

Special features:  Rejection style

Physical Details

Material:  Melamine tube

Packaging type:  Standard

Type:  Current-limiting high inrush time-delay fuse
