General specifications

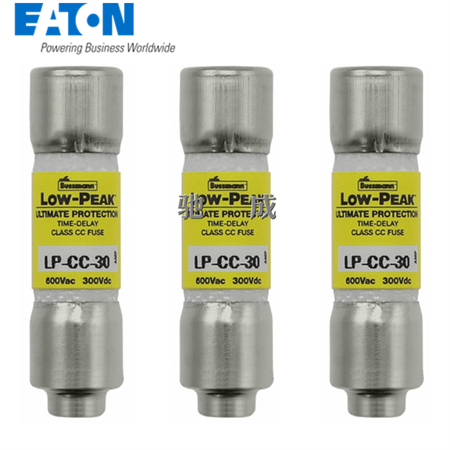

Product Name:  Eaton Bussmann series LP-CC fuse

Catalog Number:  LP-CC-30

UPC:  051712180313

EAN:  5027590063814

Product Length/Depth:  .41 in

Product Height:  1.5 in

Product Width:  .41 in

Product Weight:  .15 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Product specifications

Fuse indicator:  Non-indicating

Special features:  Rejection style

Interrupt rating:  200 kAIC at 600 Vac
20 kAIC at 300 Vdc

Number of elements:  Dual

Connection:  Ferrule end x ferrule end

Response time:  12 sec at 200%

Quantity:  10

Material:  Melamine tube

Amperage Rating:  30 A

Type:  Current-limiting time-delay fuse

Class:  Class CC

Voltage rating:  600 Vac, 300 Vdc

Application:  Specialized circuits and industrial control

Packaging type:  Standard
