General specifications

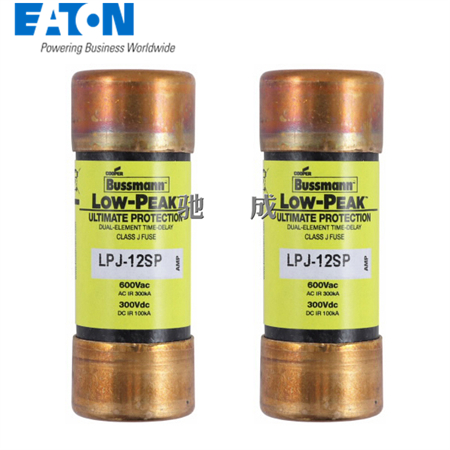

Product Name:  Eaton Bussmann series LPJ fuse

Catalog Number:  LPJ-12SP

UPC:  051712522748

Product Length/Depth:  2.25 in

Product Height:  .81 in

Product Width:  .81 in

Product Weight:  .19 lb

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Electrical rating

Amperage Rating:  12 A

Interrupt rating:  300 kAIC at 600 Vac
100 kAIC Vdc

Response time:  10 sec at 500%

Voltage rating:  600 Vac, 300 Vdc

Physical details

Fuse type:  Time delay
Current-limiting

Number of elements:  Dual

Packaging type:  Standard

General information

Class:  Class J

Connection:  Ferrule end x ferrule end

Fuse indicator:  Non-indicating

Special features:  Indicating, High in-rush current motor protection
