General specifications

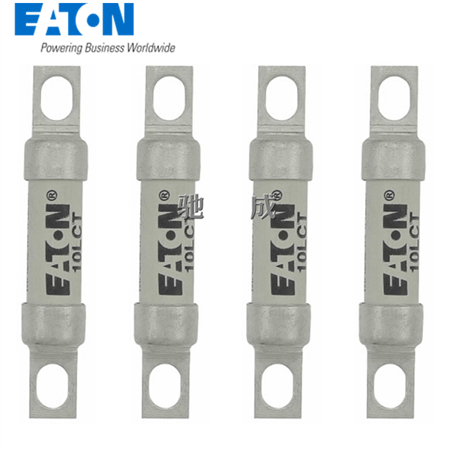

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  10LCT

UPC:  051712830454

EAN:  5027590428804

Product Length/Depth:  52 mm

Product Height:  20 mm

Product Width:  84 mm

Product Weight:  5.5 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated
Designed and tested to BS88 part 4
UL recognized
IEC 60269-4
CCC

Product specifications

Rated voltage DC:  250 V

Interrupt rating:  200 kAIC
200 kA RMS Sym, 50 kA DC at 150 Vdc

Center-to-center distance of connections:  37.5 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC/DC

Suitable for:  TI250 Fuse indicator
MAI Microswitch/adaptor
MBI Microswitch/adaptor

Mounting method:  Stud

Amperage Rating:  10 A

Fuse type:  LCT

Rated switching capacity:  200 kA

Voltage rating:  240 Vac, 150 Vdc

Fuse indicator:  None

Construction size:  Other

Clearing (I2T):  22

Rated voltage AC:  660 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  M6

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  2.5 W

Type:  Fuse

Fuse shape:  Offset bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  3.8

Application:  Semiconductor, DC Common bus, DC drives, power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
