General specifications

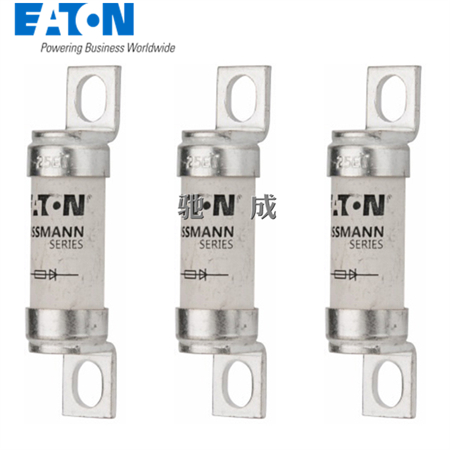

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  25ET

UPC:  051712831109

EAN:  5027590470131

Product Length/Depth:  76 mm

Product Height:  20 mm

Product Width:  20 mm

Product Weight:  38.4 g

Compliances:  RoHS Compliant
CE Marked

Certifications:  UL Recognized
IEC Rated

Product specifications

Fuse indicator:  None

Interrupt rating:  200 kAIC

Construction size:  Other

Clearing (I2T):  150

Insulated metal gripping lugs (IMGL):  No

Connection:  Blade end x blade end

Mounting method:  Stud

Amperage Rating:  25 A

Utilization category:  Other

Watt losses:  7 W

Type:  Fuse

Rated switching capacity:  200 kA

Fuse shape:  Offset bolted tags

Breaking capacity:  200 kA

Pre arc (I2T):  25

Voltage rating:  690 V

Application:  protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage type:  AC/DC
