General specifications

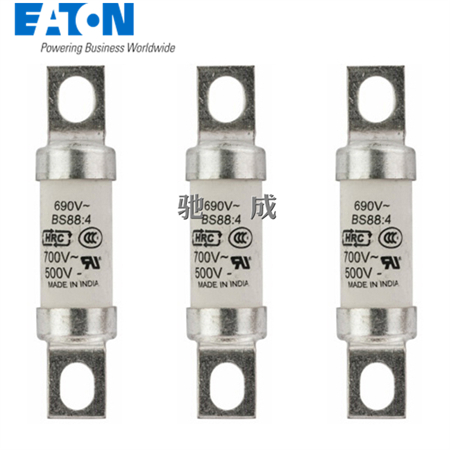

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  40ET

UPC:  051712831062

EAN:  5027590480093

Product Length/Depth:  76 mm

Product Height:  20 mm

Product Width:  20 mm

Product Weight:  39.5 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Product specifications

Fuse indicator:  None

Interrupt rating:  200 kAIC

Construction size:  Other

Clearing (I2T):  600

Insulated metal gripping lugs (IMGL):  No

Connection:  Blade end x blade end

Mounting method:  Stud

Amperage Rating:  40 A

Utilization category:  Other

Watt losses:  9 W

Type:  Fuse

Rated switching capacity:  200 kA

Fuse shape:  Offset bolted tags

Breaking capacity:  200 kA

Pre arc (I2T):  103

Voltage rating:  690 V

Application:  protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Voltage type:  AC/DC
