General specifications

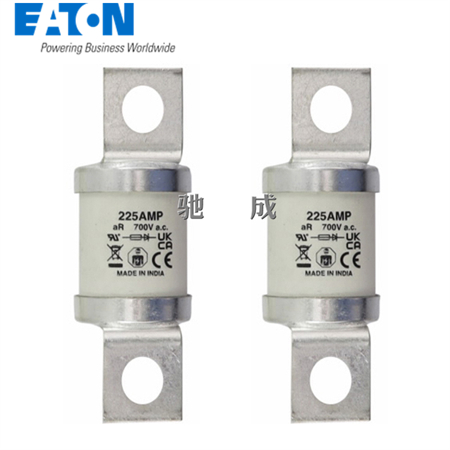

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  225MMT

UPC:  051712832571

EAN:  5027590037518

Product Length/Depth:  98 mm

Product Height:  40 mm

Product Width:  97 mm

Product Weight:  464 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized
Designed and tested to BS88 part 4
IEC 60269-4
UL recognized

Product specifications

Rated voltage DC:  350 V

Interrupt rating:  200 kA RMS Sym (IEC/UL), 40 kA at 350 Vdc (IEC)

Center-to-center distance of connections:  85 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC

Suitable for:  MC-700 Trip indicator kit (indicator + clips)
TI700 Fuse indicator
MAI Microswitch/adaptor
MBI Microswitch/adaptor

Mounting method:  Stud

Amperage Rating:  225 A

Fuse type:  MMT

Rated switching capacity:  200 kA

Voltage rating:  690 V (IEC), 700 V (UL)

Fuse indicator:  None

Construction size:  Other

Clearing (I2T):  26000

Rated voltage AC:  690 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  Other

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  42 W

Type:  Fuse

Fuse shape:  Center dual barrel bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  3700

Application:  Semiconductor, DC Common bus, DC drives, power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
