General specifications

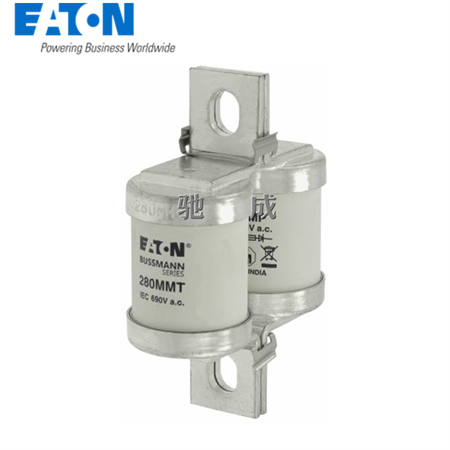

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  280MMT

UPC:  051712833394

EAN:  5027590039604

Product Length/Depth:  110 mm

Product Height:  83 mm

Product Width:  39 mm

Product Weight:  478 g

Warranty:  Not Applicable

Compliances:  Contact factory
RoHS Compliant

Product specifications

Rated voltage DC:  350 V

Interrupt rating:  200 kA RMS Sym (IEC/UL), 40 kA at 350 Vdc (IEC)

Center-to-center distance of connections:  85 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC

Suitable for:  MC-700 Trip indicator kit (indicator + clips)
TI700 Fuse indicator
MAI Microswitch/adaptor
MBI Microswitch/adaptor

Amperage Rating:  280 A

Fuse type:  MMT

Rated switching capacity:  200 kA

Voltage rating:  690 V (IEC), 700 V (UL)

Fuse indicator:  None

Construction size:  Other

Clearing (I2T):  47000

Rated voltage AC:  690 V

Color:  None

Mounting dimension:  Other

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  47 W

Type:  Fuse

Fuse shape:  Center dual barrel bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  6600

Application:  Semiconductor, DC Common bus, DC drives, power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
