General specifications

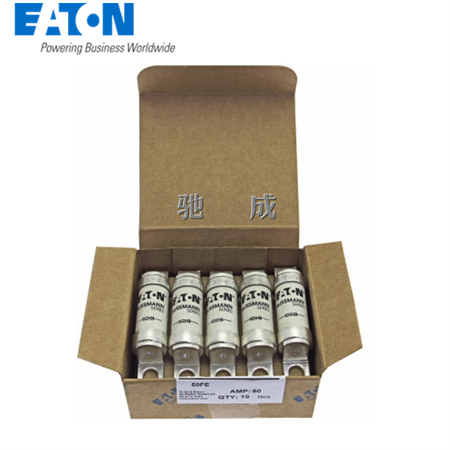

Product Name:  Eaton Bussmann series high speed British standard fuse

Catalog Number:  50FE

UPC:  051712835633

EAN:  5027590482929

Product Length/Depth:  76 mm

Product Height:  20 mm

Product Width:  20 mm

Product Weight:  40.8 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated
Designed and tested to BS88 part 4
IEC 60269-4

Product specifications

Rated voltage DC:  500 V

Interrupt rating:  200 kA RMS Sym, 50 kA at 500 Vdc

Center-to-center distance of connections:  61.8 mm

Insulated metal gripping lugs (IMGL):  No

Current type:  AC/DC

Suitable for:  EC-600 Trip indicator kit (indicator + clips)
TI700 Fuse indicator
MAI Microswitch/adaptor
MBI Microswitch/adaptor

Mounting method:  Stud

Amperage Rating:  50 A

Fuse type:  FE

Rated switching capacity:  200 kA

Voltage rating:  690 V (IEC), 700 V (UL)

Fuse indicator:  None

Construction size:  Other

Clearing (I2T):  380 at 415 V, 600 at 660 V

Rated voltage AC:  690 V

Color:  None

Connection:  Blade end x blade end

Mounting dimension:  M6

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  11 W

Type:  Fuse

Fuse shape:  Offset bolted tags

Breaking capacity:  200 kA

Class:  Class aR

Pre arc (I2T):  103

Application:  Semiconductor, DC Common bus, DC drives, power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
