General specifications

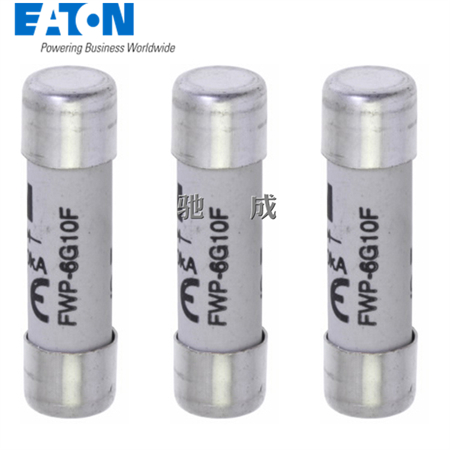

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-6G10F

UPC:  051712689373

EAN:  5027590501071

Product Length/Depth:  38 mm

Product Height:  10 mm

Product Width:  10 mm

Product Weight:  7.6 g

Warranty:  No warranty

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Product specifications

Fuse indicator:  Non Indicating

Interrupt rating:  200 kAIC

Construction size:  10 x 38 mm

Clearing (I2T):  48

Connection:  Ferrule end x ferrule end

Material:  Ceramic

Release characteristic:  Other

Amperage Rating:  6 A

Frequency rating - max:  62 Hz

Utilization category:  gR (general purpose semiconductor protection)

Watt losses:  3 W

Fuse type:  FWP-G10F

Accessories:  CHM modular fuse holder

Type:  High speed fuse

Fuse shape:  Cylindrical

Breaking capacity:  200 kA

Fuse size:  10 x 38 mm

Frequency rating - min:  45 Hz

Class:  Class aR
Class gR

Pre arc (I2T):  16

Voltage rating:  700 V

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC

Packaging type:  Standard
