General specifications

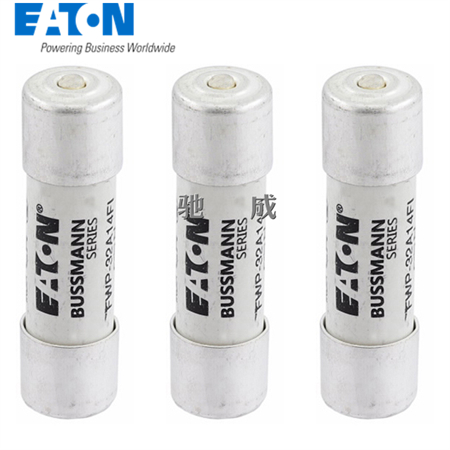

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-32A14FI

UPC:  051712542906

EAN:  5027590500616

Product Length/Depth:  52 mm

Product Height:  15 mm

Product Width:  15 mm

Product Weight:  22.3 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  CSA Certified
UL Recognized

Product specifications

Interrupt rating:  200 kAIC

Release characteristic:  Other

Amperage Rating:  32 A

Frequency rating - max:  62 Hz

Fuse type:  FWP-A14FI

Fitted with::  Striker

Fuse size:  14 x 51 mm

Voltage rating:  690 V

Fuse indicator:  Top fuse status indicator

Construction size:  14 mm x 51 mm

Clearing (I2T):  600

Color:  White

Connection:  Ferrule end x ferrule end

Quantity:  10

Material:  Ceramic

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  8 W

Type:  High speed fuse

Fuse shape:  Cylindrical

Used with:  Finger safe holders/blocks and striker

Breaking capacity:  200 kA

Frequency rating - min:  45 Hz

Class:  Class aR

Pre arc (I2T):  68

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
