General specifications

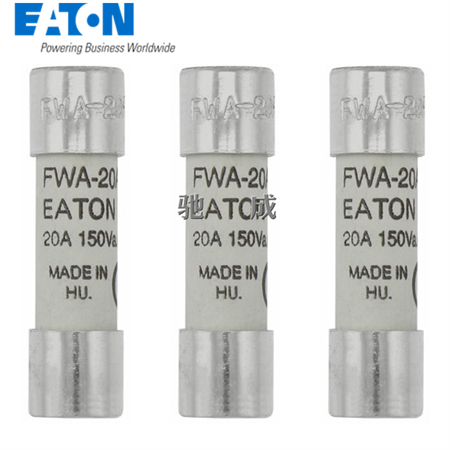

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWA-20A10F

UPC:  051712795227

EAN:  5027590499187

Product Length/Depth:  39 mm

Product Height:  11 mm

Product Width:  11 mm

Product Weight:  9.2 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  CSA Certified
UL Recognized

Product specifications

Fuse indicator:  Other

Interrupt rating:  100 kAIC

Construction size:  10 x 38 mm

Clearing (I2T):  130

Connection:  Ferrule end x ferrule end

Material:  Ceramic

Release characteristic:  Other

Amperage Rating:  20 A

Frequency rating - max:  62 Hz

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  3.8 W

Fuse type:  FWA-A10F

Accessories:  BMM Fuse block
CHM modular fuse holder

Type:  High speed fuse

Fuse shape:  Cylindrical

Breaking capacity:  200 kA

Fuse size:  10 x 38 mm

Frequency rating - min:  45 Hz

Class:  Class aR

Pre arc (I2T):  33

Voltage rating:  150 V

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
