General specifications

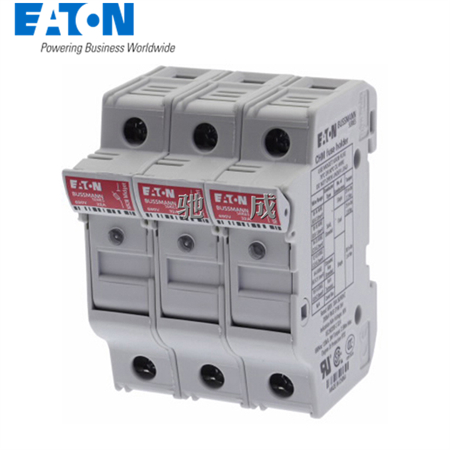

Product Name:  Eaton Bussmann series CHM modular fuse holder

Catalog Number:  CHM3DIU

UPC:  051712362788

EAN:  51712362788

Product Length/Depth:  .001 mm

Product Height:  .001 mm

Product Width:  .001 mm

Product Weight:  172 g

Warranty:  Not Applicable

Compliances:  Contact factory
RoHS Compliant

Certifications:  Contact Manufacturer

Electrical rating

Amperage Rating:  30A (UL), 32A (IEC)

Voltage rating:  600 V (UL), 690 V (IEC)

Physical details

Number of Poles:  Three-pole

Operating temperature - max:  90 °C

Operating temperature - min:  -20 °C

General information

Used with:  For use with 10 mm X 38 mm fuse
