General specifications

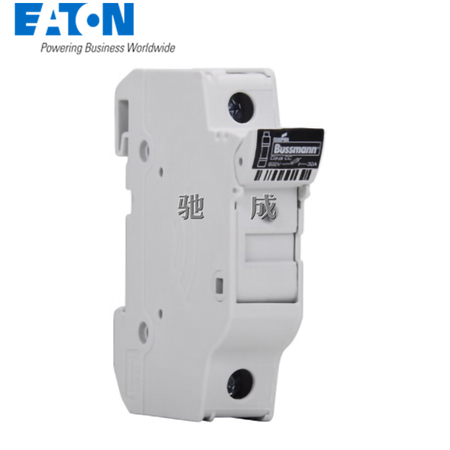

Product Name:  Eaton Bussmann series CHCC modular fuse holder

Catalog Number:  CHCC1DIU

UPC:  051712362665

Product Length/Depth:  .69 in

Product Height:  2.91 in

Product Width:  3.28 in

Product Weight:  .22 lb

Warranty:  Not Applicable

Compliances:  RoHS Compliant

Certifications:  Contact Manufacturer

Electrical rating

Amperage Rating:  30 A

Voltage rating:  48 Vdc

Physical details

Number of Poles:  Single-pole

Operating temperature - max:  90 °C

Operating temperature - min:  -20 °C

General information

Class:  Class CC

Used with:  For use with KTK-R, LP-CC and FNQ-R Class CC fuse
