General specifications

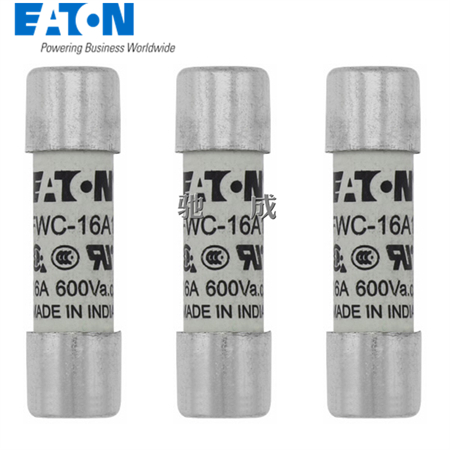

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWC-16A10F

UPC:  051712796453

EAN:  5027590499330

Product Length/Depth:  38 mm

Product Height:  11 mm

Product Width:  11 mm

Product Weight:  8.8 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  CSA Certified
UL Recognized

Product specifications

Interrupt rating:  200 kAIC Vac

Release characteristic:  Other

Amperage Rating:  16 A

Frequency rating - max:  62 Hz

Fuse type:  FWC-A10F

Accessories:  BMM Fuse block
CHM modular fuse holder

Fuse size:  10 x 38 mm

Voltage rating:  600 V

Fuse indicator:  Other

Construction size:  10 x 38 mm

Clearing (I2T):  150

Color:  White

Connection:  Ferrule end x ferrule end

Quantity:  10

Material:  Ceramic

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  3.5 W

Type:  High speed fuse

Fuse shape:  Cylindrical

Used with:  Finger safe holders/blocks and striker

Breaking capacity:  200 kA

Frequency rating - min:  45 Hz

Class:  Class aR

Pre arc (I2T):  25

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
