General specifications

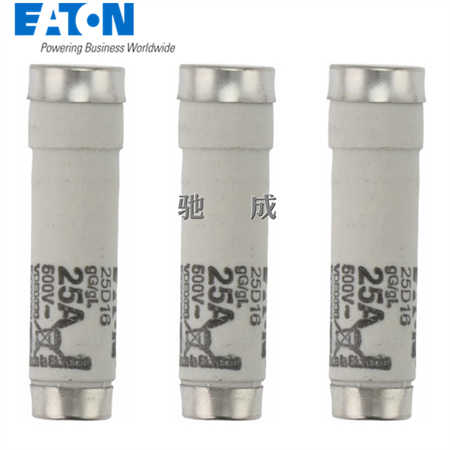

Product Name:  Eaton Bussmann series low voltage D fuse

Catalog Number:  25D16

UPC:  051712833134

EAN:  5027590470032

Product Length/Depth:  50 mm

Product Height:  13.2 mm

Product Width:  13.2 mm

Product Weight:  15.2 g

Compliances:  GoST-R
CE Marked
RoHS Compliant

Certifications:  IEC 60269
VDE
DIN EN 60269-3 (VDE 0636 Part 30)
DIN EN 60269-1 (VDE 0636 Part 10)
DIN VDE 0636-301

Product specifications

Fuse indicator:  Non-indicating

Interrupt rating:  50 kAIC

Construction:  D1

Construction size:  DI

Accessory/spare part type:  25GD16 Yellow screw cap gauge piece

Construction size (fuse inserts):  DI

Color:  Yellow

Response time:  Time-delay

Quantity:  20

Suitable for:  E16/DI Fuse base

Material:  White ceramic body

Mounting method:  Holder

Release characteristic:  Time-lag

Amperage Rating:  25 A

Utilization category:  gL/gG (cable protection/equipment protection)

Fuse type:  D16 - Time delay

Type:  fuse

Fuse shape:  Bottle

Breaking capacity:  50 kA

Fuse size:  DI

Class:  Class C gL/gG

Voltage rating:  500 V

Application:  For domestic and general industrial applications
