General specifications

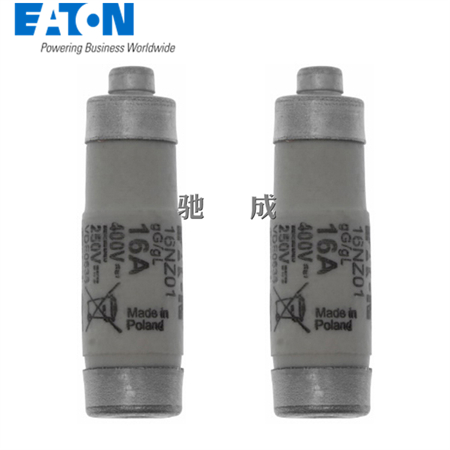

Product Name:  Eaton Bussmann series low voltage D0 fuse

Catalog Number:  16NZ01

UPC:  051712831802

EAN:  5027590437820

Product Length/Depth:  36 mm

Product Height:  11 mm

Product Width:  11 mm

Product Weight:  7.1 g

Compliances:  CE Marked
GoST-R
RoHS Compliant

Certifications:  VDE
IEC 60269
DIN EN 60269-3 (VDE 0636 Part 30)
DIN EN 60269-1 (VDE 0636 Part 10)
DIN VDE 0636-301

Product specifications

Fuse indicator:  Non-indicating

Special features:  Time-delay

Interrupt rating:  50 kAIC

Construction:  D01

Construction size:  D01

Accessory/spare part type:  16GN01 Grey screw cap gauge piece

Color:  Gray

Response time:  Time-delay

Quantity:  10

Suitable for:  E14 (D01) Fuse base
FRN01C Single-pole fuse base
FN01C Single-pole fuse base
FRN01-B Single-pole fuse base
FRN01-SB Single-pole fuse base
TFRN01C Three-pole fuse base
TFN01C Three-pole fuse base
TFRN01-B Three-pole fuse base
TFRN01-SB Three-pole fuse base

Material:  White ceramic body

Mounting method:  Holder

Amperage Rating:  16 A

Utilization category:  gL/gG (cable protection/equipment protection)

Fuse type:  NZ01 - Time delay

Type:  fuse

Fuse shape:  Bottle

Breaking capacity:  50 kA

Fuse size:  D01

Class:  Class C gL/gG

Voltage rating:  400 V

Application:  For domestic and general industrial applications
