General specifications

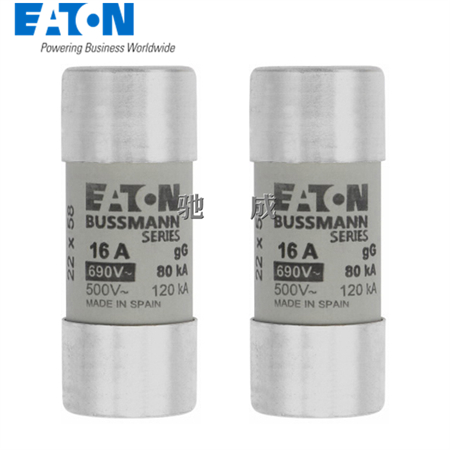

Product Name:  Eaton Bussmann series low voltage cylindrical fuse

Catalog Number:  C22G16

UPC:  051712754439

EAN:  5027590495295

Product Length/Depth:  58 mm

Product Height:  22.2 mm

Product Width:  22.2 mm

Product Weight:  53.5 g

Warranty:  No warranty

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269

Product specifications

Fuse indicator:  Other

Special features:  Toll free

Construction size:  22 mm x 58 mm

Quantity:  10

Suitable for:  CH22 Modular fuse holder

Material:  Ceramic

Mounting method:  22 x 58 mm CH Modular fuse holder

Release characteristic:  Other

Amperage Rating:  16 A

Frequency rating - max:  62 Hz

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  2.1 W

Fuse type:  C22G

Type:  fuse

Used with:  Bussmann's modular fuse holders

Fuse shape:  Cylindrical

Breaking capacity:  80 kA

Fuse size:  22 x 58 mm

Frequency rating - min:  45 Hz

Class:  Class C gL/gG

Voltage rating:  690 V

Application:  for industrial applications
for general purpose use

Voltage type:  AC

Packaging type:  Standard
