General specifications

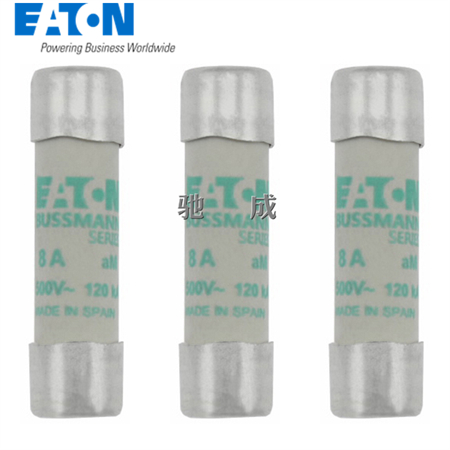

Product Name:  Eaton Bussmann series low voltage cylindrical fuse

Catalog Number:  C10M8

UPC:  051712754576

EAN:  5027590493741

Product Length/Depth:  38 mm

Product Height:  10 mm

Product Width:  10 mm

Product Weight:  8.2 g

Warranty:  1 year limited

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269

Product specifications

Fuse indicator:  Other

Special features:  Breaking Capacity 120 kA, Power Loss 0.52 W

Construction size:  10 x 38 mm

Quantity:  10

Suitable for:  CHM Modular fuse holder

Material:  Ceramic

Mounting method:  Holder

Release characteristic:  Other

Amperage Rating:  8 A

Frequency rating - max:  62 Hz

Utilization category:  aM (switchgear protection)

Watt losses:  .52 W

Fuse type:  C10M

Type:  fuse

Fuse shape:  Cylindrical

Breaking capacity:  120 kA

Fuse size:  10 x 38 mm

Frequency rating - min:  45 Hz

Class:  Class aM

Voltage rating:  500 V

Application:  motor protection
for industrial applications

Voltage type:  AC
