General specifications

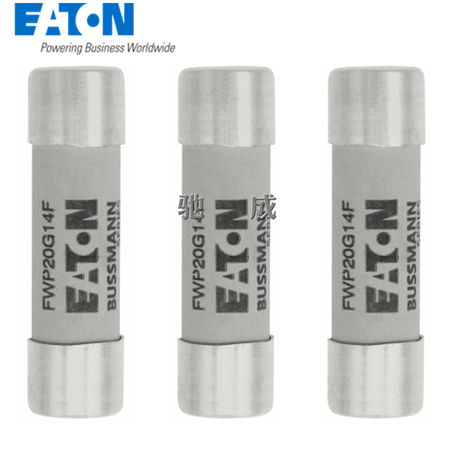

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-20G14F

UPC:  051712689502

EAN:  5027590500357

Product Length/Depth:  51 mm

Product Height:  14 mm

Product Width:  14 mm

Product Weight:  19 g

Warranty:  No warranty

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Product specifications

Fuse indicator:  Non Indicating

Interrupt rating:  200 kAIC

Construction size:  14 mm x 51 mm

Clearing (I2T):  170

Connection:  Ferrule end x ferrule end

Material:  Ceramic

Release characteristic:  Other

Amperage Rating:  20 A

Frequency rating - max:  62 Hz

Utilization category:  gR (general purpose semiconductor protection)

Watt losses:  5.4 W

Fuse type:  FWP-G14F

Accessories:  CH14 Modular fuse holder
FW14-PCB

Type:  High speed fuse

Fuse shape:  Cylindrical

Breaking capacity:  200 kA

Fuse size:  14 x 51 mm

Frequency rating - min:  45 Hz

Class:  Class gR

Pre arc (I2T):  27

Voltage rating:  500 V

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC

Packaging type:  Standard
