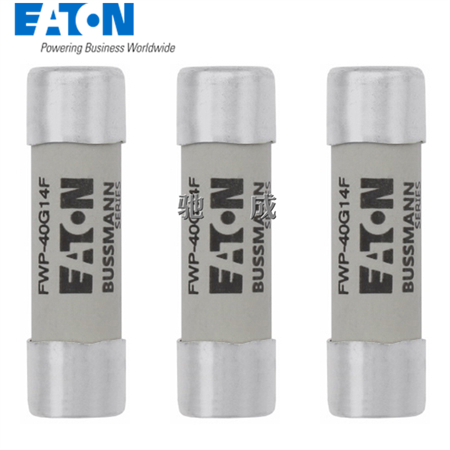

Product Name: Eaton Bussmann series high speed cylindrical fuse
Catalog Number: FWP-40G14F
UPC: 051712689533
EAN: 5027590500777
Product Length/Depth: 51 mm
Product Height: 14 mm
Product Width: 14 mm
Product Weight: 19.2 g
Warranty: No warranty
Compliances: CE Marked
RoHS Compliant
Certifications: UL Recognized
IEC Rated
Fuse indicator: Other
Interrupt rating: 200 kAIC
Construction size: 14 mm x 51 mm
Clearing (I2T): 1331
Connection: Ferrule end x ferrule end
Material: Ceramic
Release characteristic: Other
Amperage Rating: 40 A
Frequency rating - max: 62 Hz
Utilization category: Other
Watt losses: 7.52 W
Fuse type: FWP-G14F
Accessories: CH14 Modular fuse holder
FW14-PCB
Type: High speed fuse
Fuse shape: Cylindrical
Breaking capacity: 200 kA
Fuse size: 14 x 51 mm
Frequency rating - min: 45 Hz
Class: Class gR
Pre arc (I2T): 211
Voltage rating: 690 V
Application: Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
Voltage type: AC/DC
Packaging type: Standard
