General specifications

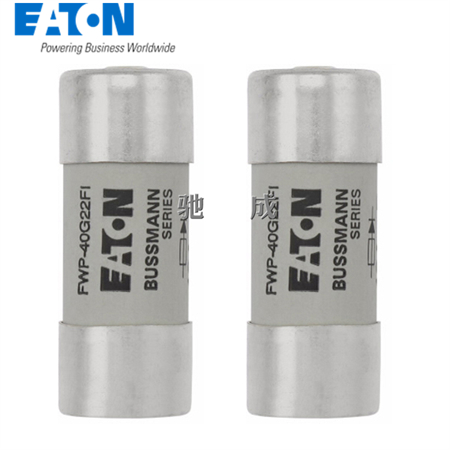

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWP-40G22FI

UPC:  051712689755

EAN:  5027590500807

Product Length/Depth:  58 mm

Product Height:  22 mm

Product Width:  22 mm

Product Weight:  52.9 g

Warranty:  No warranty

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Product specifications

Interrupt rating:  200 kAIC

Release characteristic:  Other

Amperage Rating:  40 A

Frequency rating - max:  62 Hz

Fuse type:  FWP-G22FI

Accessories:  CH22 Modular fuse holder

Fitted with::  Striker

Fuse size:  22 x 58 mm

Voltage rating:  700 V

Fuse indicator:  Top fuse status indicator

Construction size:  22 mm x 58 mm

Clearing (I2T):  899

Connection:  Ferrule end x ferrule end

Material:  Ceramic

Utilization category:  gR (general purpose semiconductor protection)

Watt losses:  8.24 W

Type:  High speed fuse

Fuse shape:  Cylindrical

Breaking capacity:  200 kA

Frequency rating - min:  45 Hz

Class:  Class gR

Pre arc (I2T):  180

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC

Packaging type:  Standard
