General specifications

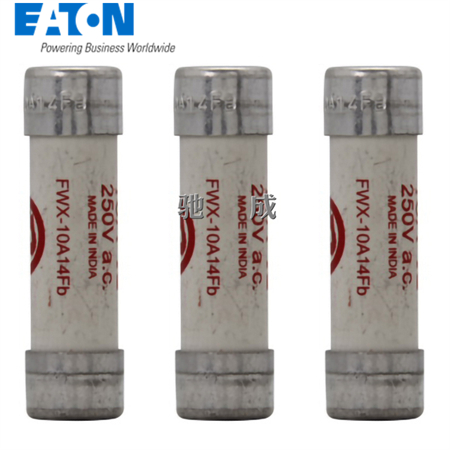

Product Name:  Eaton Bussmann series high speed cylindrical fuse

Catalog Number:  FWX-5A14F

UPC:  051712795548

EAN:  5027590501439

Product Length/Depth:  55 mm

Product Height:  32 mm

Product Width:  73 mm

Product Weight:  21.2 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized

Product specifications

Fuse indicator:  Non Indicating

Interrupt rating:  200 kAIC

Construction size:  14 mm x 51 mm

Clearing (I2T):  13 at 250 V

Connection:  Ferrule end x ferrule end

Material:  Ceramic

Release characteristic:  Other

Amperage Rating:  50 A

Frequency rating - max:  62 Hz

Utilization category:  aR (accompanied semiconductor protection)

Watt losses:  1.3 W

Fuse type:  FWX-A14F

Accessories:  CH14 Modular fuse holder
FW14-PCB

Type:  High speed fuse

Fuse shape:  Cylindrical

Breaking capacity:  200 kA

Fuse size:  14 x 51 mm

Frequency rating - min:  45 Hz

Class:  Class aR

Pre arc (I2T):  1.6

Voltage rating:  690 V

Application:  Semiconductor, DC Common bus, DC drives, Power converters/rectifiers

Voltage type:  AC/DC

Packaging type:  Standard
