General specifications

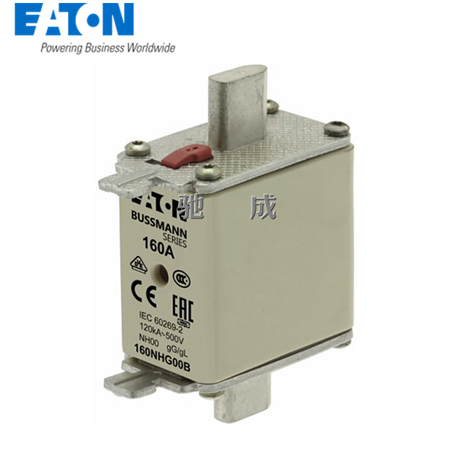

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  160NHG00B

UPC:  051712625883

EAN:  5027590437189

Product Length/Depth:  79 mm

Product Height:  58 mm

Product Width:  30 mm

Product Weight:  196.6666667 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Accessory/spare part type:  SDL-00 Solid link
FEH- Fuse extraction handle
TD00-IP20 IP protection kit
TD00-IP20I Integral protection kit
TD00-IP20IC Integral Triple pole protection kit including fuse covers

Insulated metal gripping lugs (IMGL):  No

Suitable for:  SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Amperage Rating:  160 A

Frequency rating - max:  62 Hz

Fuse type:  Square body with knife blade contact

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH00

Voltage rating:  500 V

Fuse indicator:  Combination fuse status indicator

Special features:  Live gripping lug

Construction:  NH00

Construction size:  NH00

Connection:  Blade end

Quantity:  3

Material:  Ceramic body

Utilization category:  gL/gG (cable protection/equipment protection)

Contact material:  Metal plated copper

Type:  fuse

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
