General specifications

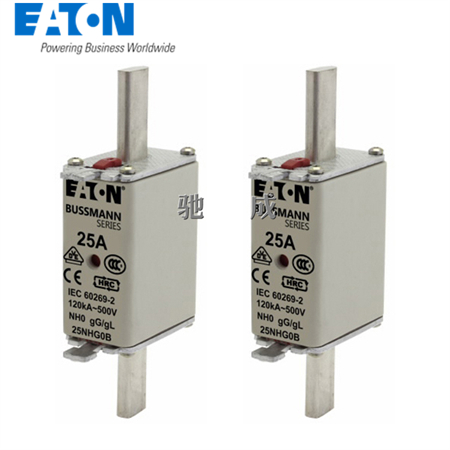

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  25NHG0B

UPC:  051712232753

EAN:  5027590471046

Product Length/Depth:  125 mm

Product Height:  58 mm

Product Width:  30 mm

Product Weight:  299.3333333 g

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH0

Construction size:  NH0

Insulated metal gripping lugs (IMGL):  No
Yes

Quantity:  3

Suitable for:  Microswitch 170H0235

Material:  Ceramic body

Amperage Rating:  25 A

Frequency rating - max:  62 Hz

Utilization category:  gL/gG (cable protection/equipment protection)

Type:  fuse

Fitted with::  Insulated metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH01

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Voltage rating:  500 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
