General specifications

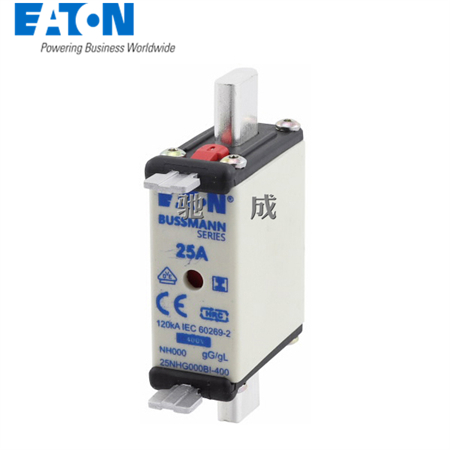

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  25NHG000BI

EAN:  5027590470988

Product Length/Depth:  79 mm

Product Height:  51 mm

Product Width:  21 mm

Product Weight:  135 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH000

Construction size:  NH000

Rated voltage AC:  500 V

Insulated metal gripping lugs (IMGL):  Yes

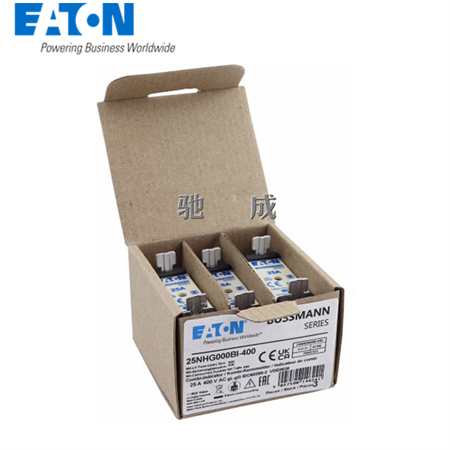

Quantity:  3

Suitable for:  Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  25 A

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  3.1 W

Type:  fuse

Fitted with::  Insulated metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Knife blade contacts
Square body

Breaking capacity:  120 kA

Fuse size:  NH000

Class:  Class gG/gL

Voltage rating:  500 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
