General specifications

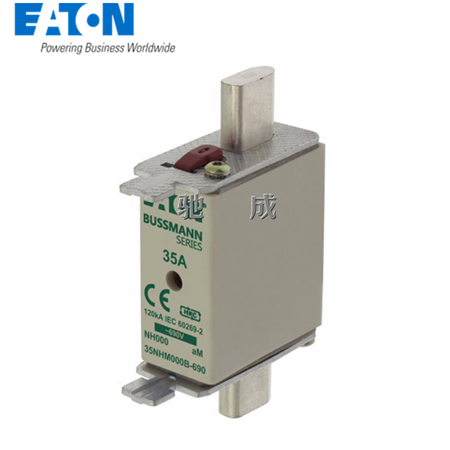

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  35NHM000B-690

EAN:  5027590478021

Product Length/Depth:  79 mm

Product Height:  51 mm

Product Width:  21 mm

Product Weight:  130.6666667 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH000

Construction size:  NH000

Rated voltage AC:  690 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  35 A

Utilization category:  aM (switchgear protection)

Watt losses:  2.1 W

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH000

Class:  Class aM

Voltage rating:  690 V

Application:  industrial

Voltage type:  AC
