General specifications

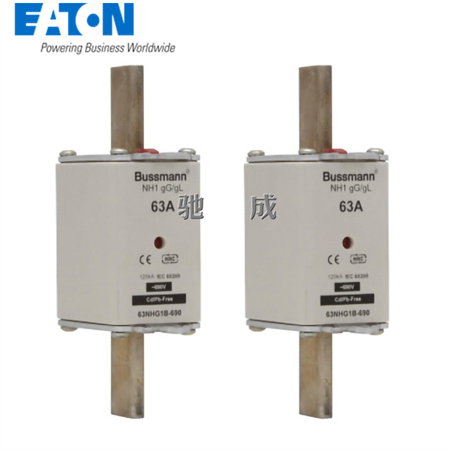

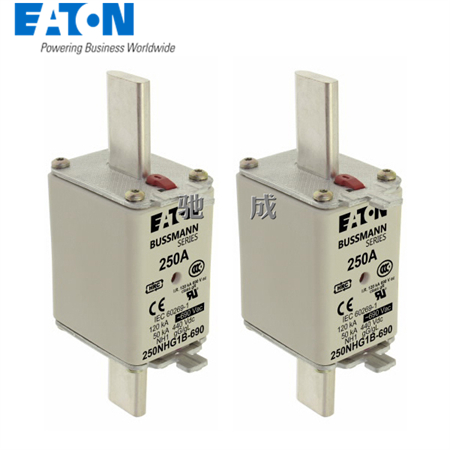

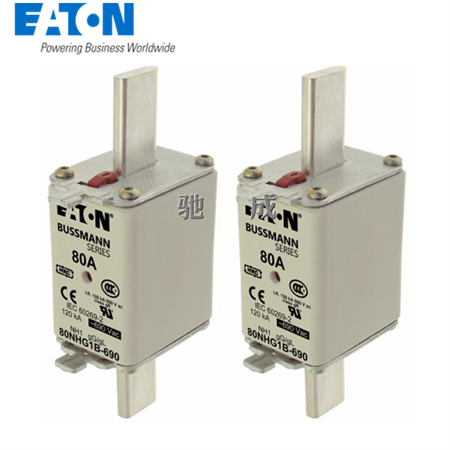

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  63NHG1B-690

UPC:  051712193191

EAN:  5027590485616

Product Length/Depth:  135 mm

Product Height:  63 mm

Product Width:  40 mm

Product Weight:  434 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Accessory/spare part type:  SDL-1 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit

Insulated metal gripping lugs (IMGL):  No

Suitable for:  SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Amperage Rating:  63 A

Frequency rating - max:  62 Hz

Fuse type:  Square body with knife blade contact

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH1

Voltage rating:  690 V

Fuse indicator:  Combination fuse status indicator

Special features:  Live gripping lug

Construction:  NH1

Construction size:  NH1

Rated voltage AC:  690 V

Connection:  Blade end

Quantity:  3

Material:  Ceramic body

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  5.6 W

Type:  fuse

Fuse shape:  Knife blade contacts
Square body

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC

Packaging type:  Standard
