General specifications

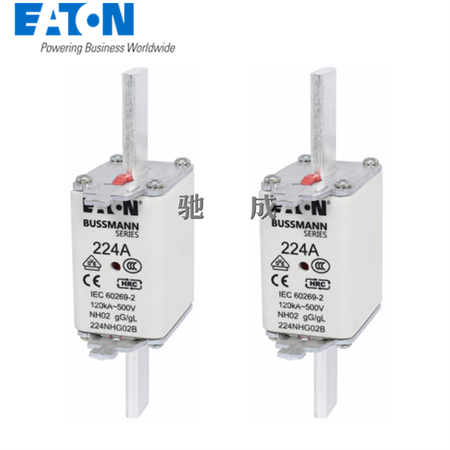

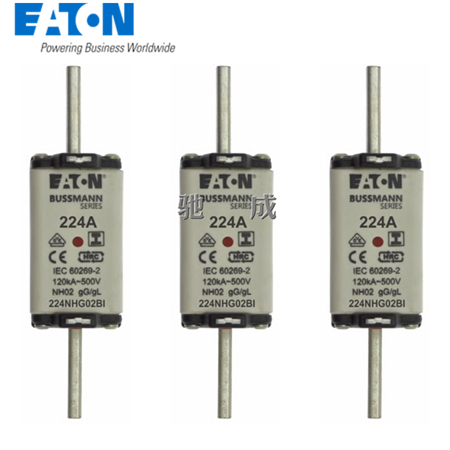

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  224NHG02B

UPC:  051712626156

EAN:  5027590468480

Product Length/Depth:  150 mm

Product Height:  63 mm

Product Width:  40 mm

Product Weight:  426.6666667 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Insulated metal gripping lugs (IMGL):  No

Suitable for:  Microswitch BVL50

Amperage Rating:  224 A

Frequency rating - max:  62 Hz

Fuse type:  Square body with knife blade contact

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH02

Voltage rating:  500 V

Fuse indicator:  Combination fuse status indicator

Special features:  Live gripping lug

Construction:  NH02

Construction size:  NH02

Connection:  Blade end

Quantity:  3

Material:  Ceramic body

Utilization category:  gL/gG (cable protection/equipment protection)

Type:  fuse

Fuse shape:  Knife blade contacts
Square body

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
