General specifications

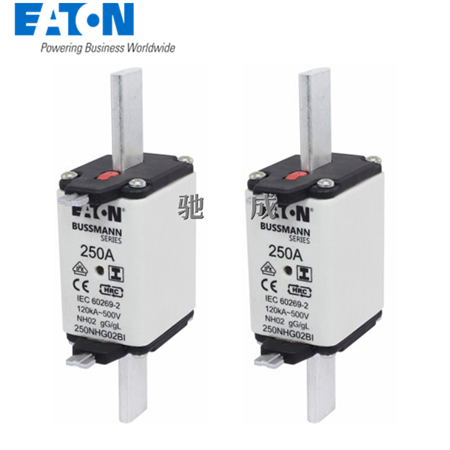

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  250NHG02BI

UPC:  051712233316

EAN:  5027590469579

Product Length/Depth:  150 mm

Product Height:  63 mm

Product Width:  39 mm

Product Weight:  407.3333333 g

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH02

Construction size:  NH02

Insulated metal gripping lugs (IMGL):  Yes

Quantity:  3

Suitable for:  Microswitch BVL50

Material:  Ceramic body

Amperage Rating:  250 A

Frequency rating - max:  62 Hz

Utilization category:  gL/gG (cable protection/equipment protection)

Type:  fuse

Fitted with::  Insulated metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH02

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Voltage rating:  500 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
