General specifications

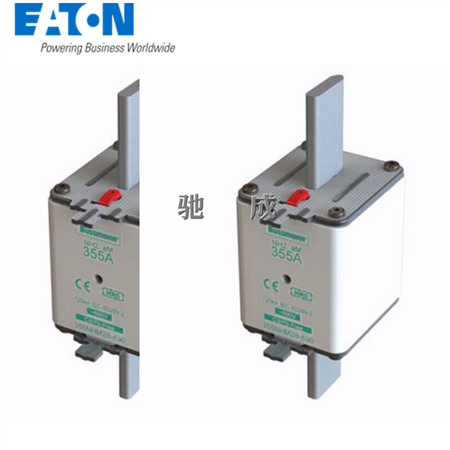

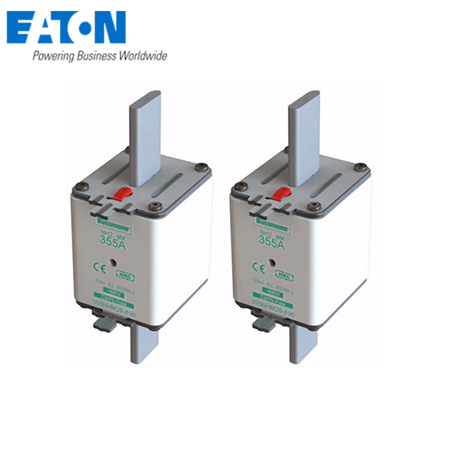

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  355NHM2B-690

UPC:  051712419871

EAN:  5027590477574

Product Length/Depth:  150 mm

Product Height:  71 mm

Product Width:  54 mm

Product Weight:  659.3333333 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Accessory/spare part type:  SDL-2 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD12-PB 2-phase barriers and 2 ganging links
TD2-IP20 Triple pole protection kit

Insulated metal gripping lugs (IMGL):  No

Suitable for:  SD2-D Single pole NH Fuse base
TD2-D Tripe pole NH Fuse base
Microswitch 170H0235
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Amperage Rating:  355 A

Frequency rating - max:  62 Hz

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH2

Voltage rating:  690 V

Fuse indicator:  Top fuse status indicator

Construction:  NH2

Construction size:  NH2

Rated voltage AC:  690 V

Quantity:  3

Material:  Ceramic body

Utilization category:  aM (switchgear protection)

Watt losses:  28 W

Type:  fuse

Fuse shape:  Knife blade contacts
Square body

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class aM

Application:  industrial

Voltage type:  AC

Packaging type:  Standard
