General specifications

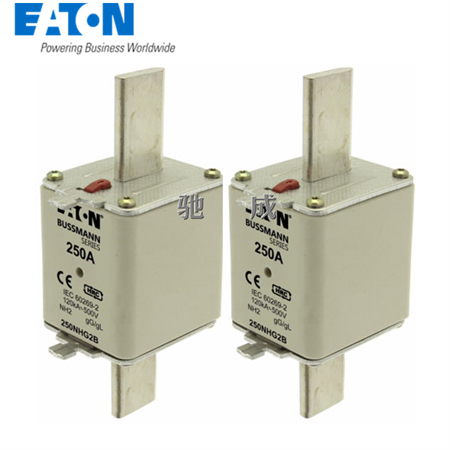

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  250NHG2B

UPC:  051712683722

EAN:  5027590469739

Product Length/Depth:  150 mm

Product Height:  71 mm

Product Width:  53 mm

Product Weight:  651.3333333 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH2

Construction size:  NH2

Rated voltage AC:  500 V

Insulated metal gripping lugs (IMGL):  No
Yes

Quantity:  3

Suitable for:  Microswitch BVL50

Material:  Ceramic body

Amperage Rating:  250 A

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  23 W

Type:  fuse

Fitted with::  Insulated metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH02

Class:  Class gG/gL

Voltage rating:  500 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
