General specifications

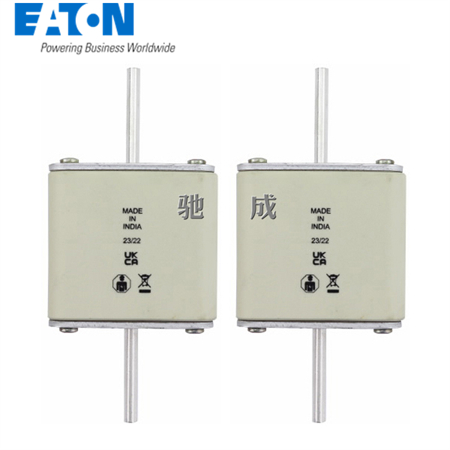

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  400NHG3B-690

UPC:  051712193085

EAN:  5027590479844

Product Length/Depth:  150 mm

Product Height:  86 mm

Product Width:  71 mm

Product Weight:  1139.333333 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Interrupt rating:  120 kAIC

Accessory/spare part type:  SDL-3 Solid link
FEH- Fuse extraction handle
SD3-SK Shroud kit
SD3-PB 2-phase barriers and 2 ganging links
TD3-IP20 Triple pole protection kit

Insulated metal gripping lugs (IMGL):  No

Suitable for:  SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Amperage Rating:  400 A

Frequency rating - max:  62 Hz

Fuse type:  Square body with knife blade contact

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse size:  NH3

Voltage rating:  690 V

Protection:  Low watts loss

Fuse indicator:  Combination fuse status indicator

Special features:  Live gripping lug

Construction:  NH3

Construction size:  NH3

Rated voltage AC:  690 V

Connection:  Blade end

Quantity:  3

Material:  Ceramic body

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  37 W

Type:  fuse

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Frequency rating - min:  45 Hz

Class:  Class gG/gL

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC

Packaging type:  Standard
