General specifications

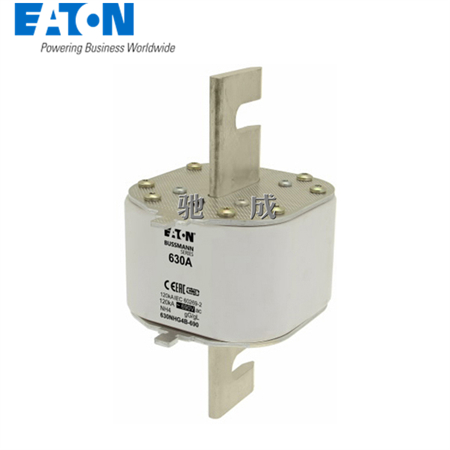

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  630NHG4B-690

UPC:  051712682824

EAN:  5027590323826

Product Length/Depth:  200 mm

Product Height:  115 mm

Product Width:  102 mm

Product Weight:  2709 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Top fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH4

Construction size:  NH4

Rated voltage AC:  690 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  SD4-S NH Fuse base
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  630 A

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  44 W

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Slotted blade contacts

Breaking capacity:  120 kA

Fuse size:  NH4

Class:  Class gG/gL

Voltage rating:  690 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
