General specifications

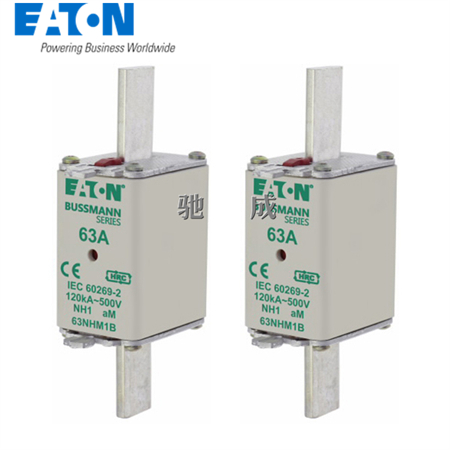

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  63NHM1B

EAN:  5027590485685

Product Length/Depth:  135 mm

Product Height:  63 mm

Product Width:  40 mm

Product Weight:  407.3333333 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH1

Construction size:  NH1

Accessory/spare part type:  SDL-1 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit

Rated voltage AC:  500 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  63 A

Utilization category:  aM (switchgear protection)

Watt losses:  4.4 W

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH1

Class:  Class aM

Voltage rating:  500 V

Application:  industrial

Voltage type:  AC
