General specifications

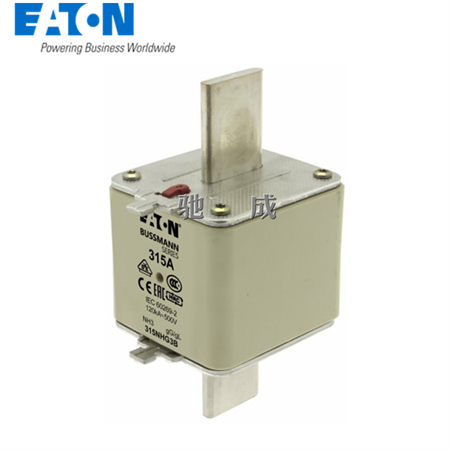

Product Name:  Eaton Bussmann series low voltage NH Fuse

Catalog Number:  315NHG3B

EAN:  5027590476522

Product Length/Depth:  150 mm

Product Height:  86 mm

Product Width:  71 mm

Product Weight:  1100 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Fuse indicator:  Combination fuse status indicator

Interrupt rating:  120 kAIC

Construction:  NH3

Construction size:  NH3

Accessory/spare part type:  SDL-3 Solid link
FEH- Fuse extraction handle
SD3-SK Shroud kit
SD3-PB 2-phase barriers and 2 ganging links
TD3-IP20 Triple pole protection kit

Rated voltage AC:  500 V

Insulated metal gripping lugs (IMGL):  No

Quantity:  3

Suitable for:  SD3-D Single pole NH Fuse base
TD3-D Tripe pole NH Fuse base
Microswitch 170H0235
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

Material:  Ceramic body

Amperage Rating:  315 A

Utilization category:  gL/gG (cable protection/equipment protection)

Type:  fuse

Fitted with::  Metal gripping lugs

Rated switching capacity:  120 kA

Fuse shape:  Square body
Knife blade contacts

Breaking capacity:  120 kA

Fuse size:  NH3

Class:  Class gG/gL

Voltage rating:  500 V

Application:  industrial
Utilities, Solar, Wind

Voltage type:  AC
