General specifications

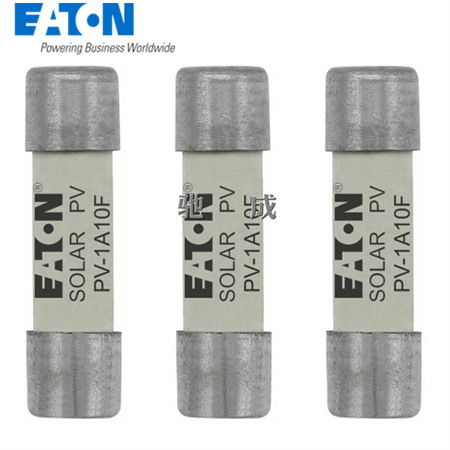

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-1A10F

UPC:  051712243629

EAN:  5027590505659

Product Length/Depth:  38 mm

Product Height:  10 mm

Product Width:  10 mm

Product Weight:  9.7 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  IEC Rated
UL Listed
UL 2579
CSA Certified
UL Listed file E1230
CCC Marked

Electrical rating

Amperage Rating:  1 A

Voltage rating:  1000 V

Watt losses:  .8 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10F

Fuse size:  10 x 38 mm

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
HPV-DV Inline holder
