General specifications

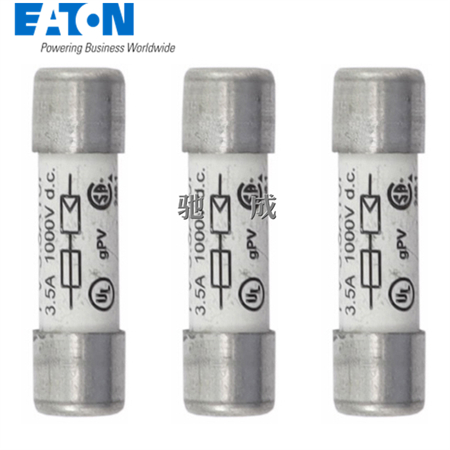

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-3-5A10F

UPC:  051712387613

EAN:  5027590505987

Product Length/Depth:  38 mm

Product Height:  10 mm

Product Width:  10 mm

Product Weight:  9.7 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL 2579
IEC Rated
UL Listed
CSA Certified
CCC Marked

Electrical rating

Amperage Rating:  3.5 A

Voltage rating:  1000 V

Watt losses:  1.4 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10F

Fuse size:  10 x 38 mm

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
HPV-DV Inline holder
