General specifications

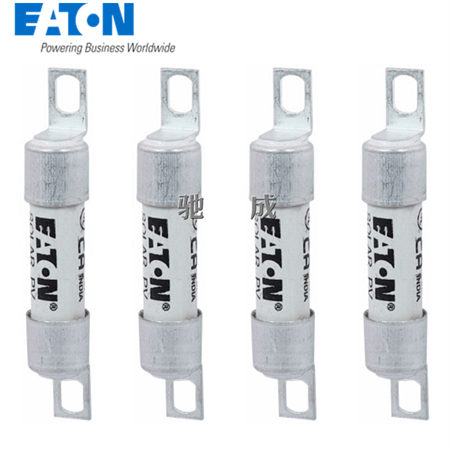

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-4A10-T

UPC:  051712357449

EAN:  5027590506243

Product Length/Depth:  62 mm

Product Height:  25 mm

Product Width:  52 mm

Product Weight:  11.3 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  UL Listed
CSA Certified
IEC Rated
CCC

Electrical rating

Amperage Rating:  4 A

Voltage rating:  1000 V

Watt losses:  1.5 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10-T

Fuse size:  10 x 38 mm

Fitted with::  Bolt fixing

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
