General specifications

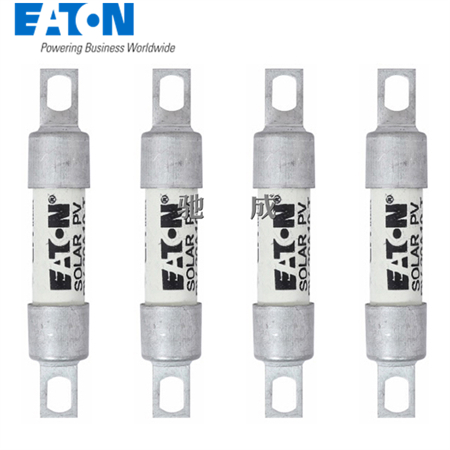

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-20A10-T

UPC:  051712389891

EAN:  5027590505796

Product Length/Depth:  62 mm

Product Height:  25 mm

Product Width:  52 mm

Product Weight:  12.2 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified
CCC

Electrical rating

Amperage Rating:  20 A

Voltage rating:  1000 V

Watt losses:  3.6 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10-T

Fuse size:  10 x 38 mm

Fitted with::  Bolt fixing

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
