General specifications

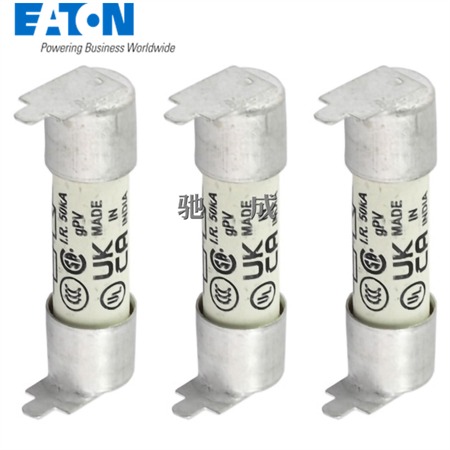

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-5A10-1P

UPC:  051712373517

EAN:  5027590506298

Product Length/Depth:  44 mm

Product Height:  38 mm

Product Width:  52 mm

Product Weight:  12.1 g

Warranty:  Not Applicable

Compliances:  RoHS Compliant
CE Marked

Certifications:  CSA Certified
IEC Rated
UL Listed
CCC

Electrical rating

Amperage Rating:  5 A

Voltage rating:  1000 V

Watt losses:  1.6 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10-1P

Fuse size:  10 x 38 mm

Fitted with::  PCB Fixing single pin

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
