General specifications

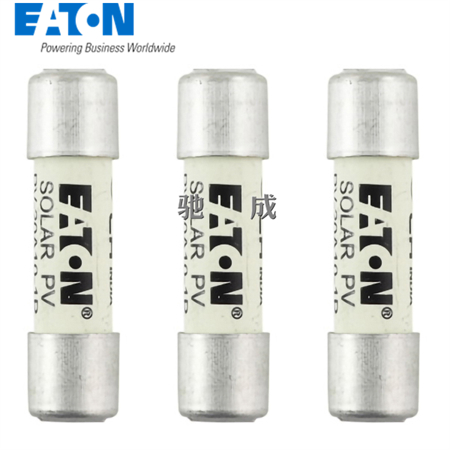

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-12A10-1P

UPC:  051712389853

EAN:  5027590505383

Product Length/Depth:  40 mm

Product Height:  13 mm

Product Width:  7 mm

Product Weight:  10.9 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified
CCC

Electrical rating

Amperage Rating:  12 A

Voltage rating:  1000 V

Watt losses:  2.7 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-A10-1P

Fuse size:  10 x 38 mm

Fitted with::  PCB Fixing single pin

Material:  Ceramic

Compatible fuse holder

Suitable for:  CHPV Modular fuse holder
