General specifications

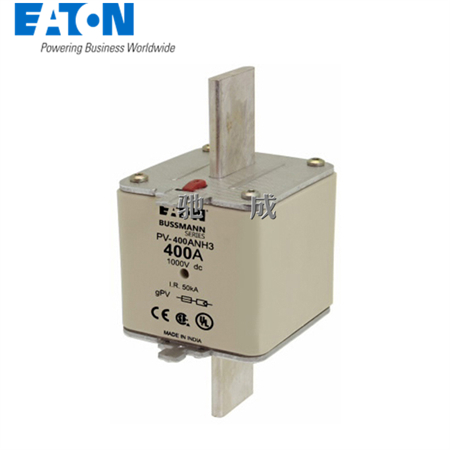

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-400ANH3

UPC:  051712498012

EAN:  5027590506205

Product Length/Depth:  80 mm

Product Height:  32 mm

Product Width:  51 mm

Product Weight:  1139 g

Warranty:  No warranty

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  400 A

Voltage rating:  1000 Vdc

Watt losses:  50 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-ANH3

Fuse size:  NH3

Fitted with::  Blade without bolt holes

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD3-D-PV NH Fuse base
