General specifications

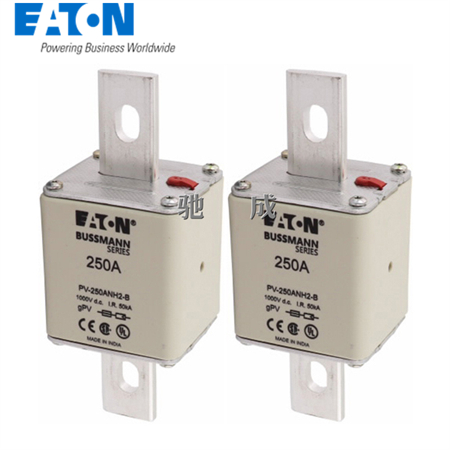

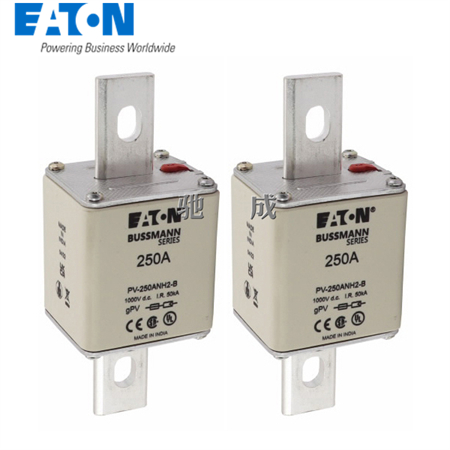

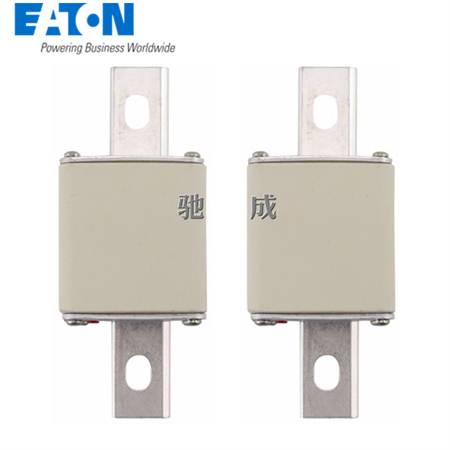

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-250ANH2-B

UPC:  051712531672

EAN:  5027590505888

Product Length/Depth:  54 mm

Product Height:  61 mm

Product Width:  150 mm

Product Weight:  434 g

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  250 A

Voltage rating:  1000 Vdc

Watt losses:  38 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-ANH2-B

Fuse size:  NH2

Fitted with::  Blade with bolt holes

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD2-D-PV NH Fuse base
