General specifications

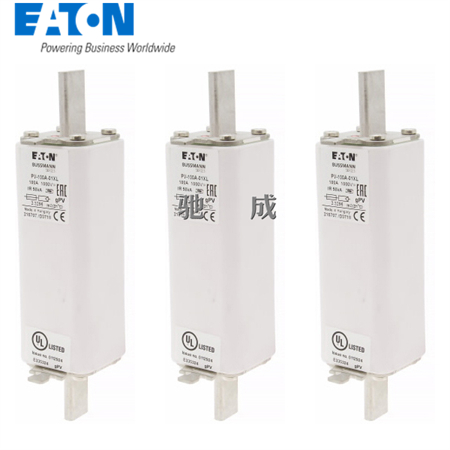

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-100A-01XL

UPC:  051712371858

EAN:  5996516000373

Product Length/Depth:  217 mm

Product Height:  65 mm

Product Width:  85 mm

Product Weight:  1200 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  100 A

Voltage rating:  1000 Vdc

Watt losses:  32 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-01XL

Fuse size:  01XL

Fitted with::  Blade without bolt holes

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD1XL-S-PV XL Fuse base
