General specifications

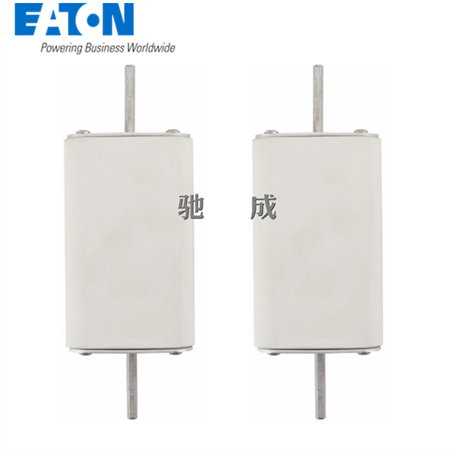

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-500A-3L

UPC:  051712372213

EAN:  5996516000564

Product Length/Depth:  .001 mm

Product Height:  .001 mm

Product Width:  .001 mm

Product Weight:  1978 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  500 A

Voltage rating:  1000 Vdc

Watt losses:  85 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse size:  3L

Fitted with::  Blade without bolt holes

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD3L-S-PV XL Fuse base
